Service Repair Manual | |
| Year | 1996-1997 |
| Engine code | AR67106 |
| Engine size | 1747ccm |
| Power | 103kw |
| Idle speed | 790-890rpm |
| Compression | 11.0-14.0bar |
| Fuel system | Bosch Motronic M2.10.3 / M2.10.4 |
| Firing order | 1-3-4-2 |
| Spark plug | NGK BKR6EKPA+ / PMR7A Denso PK20PR-P8 / IU22 |
| Electrode gap | 0.9mm |
| CO | 0.5% |
| CO2 | 14.5-16.0% |
| HC | 100ppm |
| O2 | 0.1-0.5% |
| CO content at increased idle speed | 0.3% |
| Increased idle speed for CO test | 2500-2900rpm |
| Lambda | 0.97-1.03 |
| Radiator cap | 0.9-1.1bar |
| Thermostat opens | 81-85℃ |
| Ventilator turn on | 92-97℃ |
| Battery | 45Ah |
| Alternator | 75A |

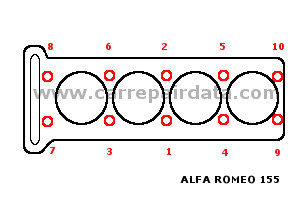

| Cylinder head tightening sequence | |
 | |
| Cylinder head tightening torque 1 | 20Nm |
| Cylinder head tightening torque 2 | 40° |
| Cylinder head tightening torque 3 | 90° |
| Cylinder head tightening torque 4 | 90° |
| Cylinder head tightening torque 5 | 90° |
| Spark plug Tightening torque | M14: 25-35Nm M10: 10-12Nm |
| Engine oil with filter | 4.4l |
| Cooling system | 8.4l |
| Gearbox oil | 2.0l |
| Engine oil grade | API SH SAE 10W-40 |
| API SH SAE 10W-60 | |
| Gearbox oil grade | API GL-5 SAE 80W-90 |
| Brake fluid | DOT 4 |
| Timing belt | 120000km |
 | |
| Tire dimension (x/y R z) | 185/60 R14 |
| 195/60 R14 | |
| Front wheel presure | 2.2bar |
| Rear wheel presure | 2.0bar |
| Wheel bolt tightening torque (B) | 83-103Nm |
| Rear hub tightening torque (H) | 226-294Nm |
 | |
| Minimal front brake disk thickness (R) | 18.2 / 20.2mm |
| Minimal rear brake disk thickness (R) | 9.2mm |
| Minimal front pad thickness without backing plate (P2) | 1.5mm |
| Minimal rear pad thickness without backing plate (P2) | 1.5mm |
Alfa Romeo 155 1.8TS 16V (1747ccm) 1996-1997
Manufacturer | |
| Alfa Romeo | |
Model | |
| 155 | |
Type | |
| 1.8TS 16V | |
Year | |
| 1996-1997 | |
Engine code | |
| AR67106 | |
Engine size | |
| 1747ccm | |
Power | |
| 103kw | |
