Service Repair Manual | |
| Year | 2000-2004 |
| Engine code | M47D20 |
| Engine size | 1951ccm |
| Power | 100kw |
| Idle speed | 780-880rpm |
| Compression | 20-25bar |
| Radiator cap | 1.4-1.6bar |
| Thermostat opens | 85-88℃ |
| Ventilator turn on | 90-96℃ |
| Battery | 95Ah |
| Alternator | 150A |

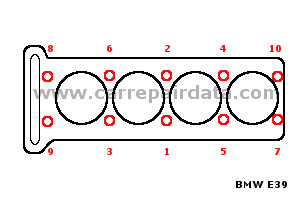

| Cylinder head tightening sequence | |
 | |
| Cylinder head tightening torque 1 | 40Nm |
| Cylinder head tightening torque 2 | 80Nm |
| Cylinder head tightening torque 3 | slacken bolts: 180° |
| Cylinder head tightening torque 4 | 50Nm |
| Cylinder head tightening torque 5 | 90°, 90° |
| Engine oil with filter | 6.0l |
| Cooling system | 9.4l |
| Gearbox oil | 1.35l |
| Differential | 1.0l |
| Engine oil grade | ACEA A3.96 / B3.96 SAE 0W-40 |
| ACEA A3.96 / B3.96 SAE 5W-30 | |
| ACEA A3.96 / B3.96 SAE 5W-40 | |
| ACEA A3.96 / B3.96 SAE 10W-40 | |
| Gearbox oil grade | Orange label = ATF Dexron II D Green label = Synthetic Mobil SCH630(BM) part No. 81-22-9-407-305 Yellow label = MTF-LT-1 / MTF-LT-2 No label = API GL-4 SAE 80 |
| Differential oil | API GL-4 SAE 75W-90 |
| Brake fluid | DOT4 |
 | |
| Tire dimension (x/y R z) | 205/65 R15 |
| 225/60 R15 | |
| 225/55 R16 | |
| Front wheel presure | 2.0bar |
| Rear wheel presure | 2.4bar |
| Wheel bolt tightening torque (B) | 110-130Nm |
| Front hub tightening torque (H) | 290Nm |
| Rear hub tightening torque (H) | M22 = 200Nm M24 = 250Nm M27 = 300Nm |
 | |
| Minimal front brake disk thickness (R) | 20.4mm |
| Minimal rear brake disk thickness (R) | 8.4 / 18.4mm |
| Minimal front pad thickness (P) | 3.0mm |
| Minimal rear pad thickness (P) | 3.0mm |
BMW E39 520d (1951ccm) 2000-2004
Manufacturer | |
| BMW | |
Model | |
| E39 | |
Type | |
| 520d | |
Year | |
| 2000-2004 | |
Engine code | |
| M47D20 | |
Engine size | |
| 1951ccm | |
Power | |
| 100kw | |
