Service Repair Manual |
| Year | 2002-2004 |
|
| Engine code | FFDA |
|
| Engine size | 1753ccm |
|
| Power | 74kw |
|
| Idle speed | 800-1000rpm |
|
| Radiator cap | 1.2bar |
|
| Thermostat opens | 87-102℃ |
|
| Battery | 72Ah |
|
| Alternator | 90A |
|

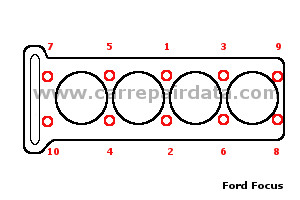

| Cylinder head tightening sequence | |
 |
|
| Cylinder head tightening torque 1 | 20Nm |
|
| Cylinder head tightening torque 2 | 54Nm |
|
| Cylinder head tightening torque 3 | 90° |
|
| Cylinder head tightening torque 4 | sort bolts: 70°, long bolts: 90° |
|
| Engine oil with filter | 5.6l |
|
| Cooling system | 6.5l |
|
| Gearbox oil |
|
 Oil = 1.9l |
|
| Engine oil grade | WSS-M2C913-B SAE 5W-30 |
|
| Gearbox oil grade | Ford WSD-M2C200-C |
|
| Brake fluid | Super DOT 4 |
|
| Timing belt | 160000km |
|
 |
| Tire dimension (x/y R z) | 185/65 R14 |
| 195/60 R15 |
| 205/50 R16 |
|
| Front wheel presure | 2.2bar |
|
| Rear wheel presure | 2.2bar |
|
| Wheel bolt tightening torque (B) | 85Nm |
|
| Front hub tightening torque (H) | 316Nm |
|
| Rear hub tightening torque (H) | 235Nm |
|
 |
| Minimal front brake disk thickness (R) | 20.0mm |
|
| Minimal rear brake disk thickness (R) | 8.0mm |
|
| Minimal front pad thickness without backing plate (P2) | 1.5mm |
|
| Minimal rear pad thickness without backing plate (P2) | 1.5mm |
|
