Service Repair Manual | |
| Year | 1997-1999 |
| Engine code | 606.962 |
| Engine size | 2996ccm |
| Power | 130kw |
| Idle speed | 550-650rpm |
| Radiator cap | 1.4bar |
| Thermostat opens | 80-85℃ |
| Battery | 100Ah |
| Alternator | 120A |

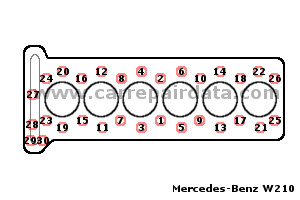

| Cylinder head tightening sequence | |
 | |
| Cylinder head tightening torque 1 | bolts: 1-26 12Nm |
| Cylinder head tightening torque 2 | bolts: 1-26 26Nm |
| Cylinder head tightening torque 3 | bolts: 1-26 90° |
| Cylinder head tightening torque 4 | wait: 10 min. |
| Cylinder head tightening torque 5 | bolts: 1-26 90° bolts: 27-30 18Nm |
| Engine oil with filter | 8.0l |
| Cooling system | 10.0l |
| Automatic transmission fluid | Dry refill = 7.1l |
| Differential | 1.1l |
| Engine oil grade | API CF SAE 5W-30 |
| API CF SAE 5W-40 | |
| API CF SAE 5W-50 | |
| Automatic transmission fluid type | ATF |
| Differential oil | API GL-5 SAE 90 API GL-5 SAE 85W-90 |
| Brake fluid | DOT 4 |
 | |
| Tire dimension (x/y R z) | 215/55 R16 |
| Front wheel presure | 2.0bar |
| Rear wheel presure | 2.2bar |
| Wheel bolt tightening torque (B) | 110Nm |
| Rear hub tightening torque (H) | 220Nm |
 | |
| Minimal front brake disk thickness (R) | 25.4mm |
| Minimal rear brake disk thickness (R) | 8.3mm |
| Minimal front pad thickness without backing plate (P2) | 2.0mm |
| Minimal rear pad thickness without backing plate (P2) | 2.0mm |
Mercedes-Benz E-Class W210 E 300 TurboDiesel 210.025 (2996ccm) 1997-1999
Manufacturer | |
| Mercedes-Benz | |
Model | |
| E-Class W210 | |
Type | |
| E 300 TurboDiesel 210.025 | |
Year | |
| 1997-1999 | |
Engine code | |
| 606.962 | |
Engine size | |
| 2996ccm | |
Power | |
| 130kw | |
