Service Repair Manual | |
| Year | 2009- |
| Engine code | A16XER |
| Engine size | 1598ccm |
| Power | 85kw |
| Idle speed | 730-830rpm |
| Firing order | 1-3-4-2 |
| Spark plug | Bosch FR 9 LCX NGK ZFR6V-G Denso KJ16CR-L11 |
| Electrode gap | 1.1mm |
| Lambda | 0.97-1.03 |
| Radiator cap | 1.4bar |
| Thermostat opens | 105℃ |
| Battery | 60Ah |
| Alternator | 100/120/140A |

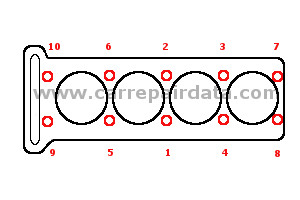

| Cylinder head tightening sequence | |
 | |
| Cylinder head tightening torque 1 | 25Nm |
| Cylinder head tightening torque 2 | 90° |
| Cylinder head tightening torque 3 | 90° |
| Cylinder head tightening torque 4 | 90° |
| Cylinder head tightening torque 5 | 45° |
| Spark plug Tightening torque | 25Nm |
| Engine oil with filter | 4.5l |
| Cooling system | 5.6l |
| Gearbox oil | |
 Oil = 1.6l | |
| Automatic transmission fluid | 4.0l / Dry refill = 8.0l |
| Engine oil grade | Dexos II 5W-30 |
| Dexos II 5W-40 | |
| Dexos II 0W-30 | |
| Dexos II 0W-40 | |
| GM-LL-A-025 5W-30 | |
| GM-LL-A-025 5W-40 | |
| Gearbox oil grade | API GL-4 SAE 75W |
| API GL-4 SAE 80W | |
| Automatic transmission fluid type | Dexron VI |
| Brake fluid | DOT4+ |
 | |
| Tire dimension (x/y R z) | 205/60 R16 |
| 215/50 R17 | |
| 225/45 R17 | |
| Front wheel presure | 2.2bar |
| Rear wheel presure | 2.2bar |
| Wheel bolt tightening torque (B) | 140Nm |
 | |
| Minimal front brake disk thickness (R) | 23.0mm |
| Minimal rear brake disk thickness (R) | 10.0mm |
| Minimal front pad thickness without backing plate (P2) | 2.0mm |
| Minimal rear pad thickness without backing plate (P2) | 2.0mm |
Opel Astra J 1.6 (1598ccm) 2009-
Manufacturer | |
| Opel | |
Model | |
| Astra J | |
Type | |
| 1.6 | |
Year | |
| 2009- | |
Engine code | |
| A16XER | |
Engine size | |
| 1598ccm | |
Power | |
| 85kw | |
