Service Repair Manual | |
| Year | 1998-2005 |
| Engine code | G16B |
| Engine size | 1590ccm |
| Power | 69kw |
| Idle speed | 700-800 / 750-850rpm |
| Compression | 14.0bar |
| Minimum compression | 12.0bar |
| Firing order | 1-3-4-2 |
| Spark plug | NGK BKR6E-11 NGK IFR6E11 Denso K20PR-U11 Denso SK20PR-A11 |
| Electrode gap | 1.0-1.1mm |
| Lambda | 0.97-1.03 |
| Radiator cap | 1.1bar |
| Thermostat opens | 88℃ |
| Ventilator turn on | 70℃ |
| Battery | 28 / 36 / 48 / 54Ah |
| Alternator | 60 / 70 / 85A |
| Spark plug Tightening torque | 25Nm |

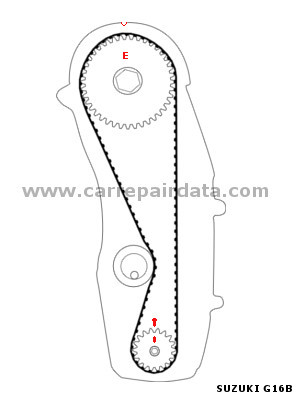

| Camshaft drive | |
 | |
| Engine oil with filter | 4.5l |
| Cooling system | 5.5l |
| Gearbox oil | 1.5 / 2.6l |
| Automatic transmission fluid | 2.5 / 6.9l |
| Differential | 1.0l |
| Differential rear | 2.2l |
| Engine oil grade | API SG / SH / SJ SAE 10W-40 |
| API SG / SH / SJ SAE 10W-50 | |
| API SG / SH / SJ SAE 15W-40 | |
| API SG / SH / SJ SAE 15W-50 | |
| API SG / SH / SJ SAE 20W-50 | |
| Gearbox oil grade | API GL-4 SAE 75W-90 |
| API GL-4 SAE 75W-85 | |
| API GL-4 SAE 80W-90 | |
| Automatic transmission fluid type | ATF Dexron III |
| Differential oil | API GL-5 SAE 75W-85 |
| Differential oil rear | API GL-5 SAE 75W-85 |
| Brake fluid | DOT 3 |
| Timing belt | 100000km |
 | |
| Tire dimension (x/y R z) | 215/65 R16 |
| 235/60 R16 | |
| Wheel bolt tightening torque (B) | 100Nm |
| Front hub tightening torque (H) | 216Nm |
 | |
| Minimal front brake disk thickness (R) | 20.0 / 15.0mm |
| Minimal front pad thickness (P) | 7.0 / 7.5mm |
Suzuki Grand Vitara 1.6 (1590ccm) 1998-2005
Manufacturer | |
| Suzuki | |
Model | |
| Grand Vitara | |
Type | |
| 1.6 | |
Year | |
| 1998-2005 | |
Engine code | |
| G16B | |
Engine size | |
| 1590ccm | |
Power | |
| 69kw | |
